Compliance with applicable standards

This product complies with Directive 2001/95/CE on general product safety. It has been tested to easily withstand a pressure of 5 to 10 bars and can resist over 16 bars(232PSI). Its nozzles are certified for outdoor use, and installation must be carried out according to the provided instructions.

Product: Blazeblock Fire Prevention Ramp

Applicable Directive: 2001/95/EC – General Product Safety Directive

1. Product Identification

• Trade name: Blazeblock

• Product type: Outdoor water spray ramp

• Model: BZB-360

• Intended use: 360° water spraying around a building to limit the spread of an external fire

• End user: Individuals or professionals (fixed or mobile installation)

2. Technical Description

• Number of nozzles: 3 - 9 ( depending configuration )

• Nozzle spray angle: 180 + 360° – 3 to 4 mm

• Nozzle material: Aluminium

• Nominal flow rate: 75 to 83 L/min for all hydrojet system and 80L/min for hydrodôme

• Maximum supported pressure: Up to 16 bars(232PSI) at the ramp

• Projection distance: 5 - 8 to 12 meters (depending on model, pressure and pipe diameter)

• Installation: Rooftop 360° (center of roof), on a solid support without drilling the tiles

• Water source: Swimming pool, domestic network, water tank, cistern, well...

• Power supply: Via external pump (e.g.: 7 bars at 4000 L/h)

3. Manufacturer

• Name: BlazeBlock EI

• Address: Saint Hilaire De Riez, FRANCE

• Contact: contact@blazeblock.fr

4. Risk Analysis and Safety Measures

Potential risks:

• Overpressure risk → components certified up to 16 bars

• Risk of falling during roof installation → Installation by client or professional; clear instructions provided in case of vertigo

• Burn risk in case of nearby fire → Even with optimal protection, always evacuate if instructed to do so

• Risk of UV or corrosion damage → Use of weather-resistant materials

🛡️ 5. Standards Applied and Regulatory Compliance

The product Blazeblock – model BZB-360, also known under the trade name Hydrojet / hydrodôme, was designed in compliance with the essential safety requirements defined by the applicable directives, particularly the Machinery Directive 2006/42/EC.

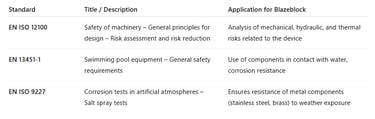

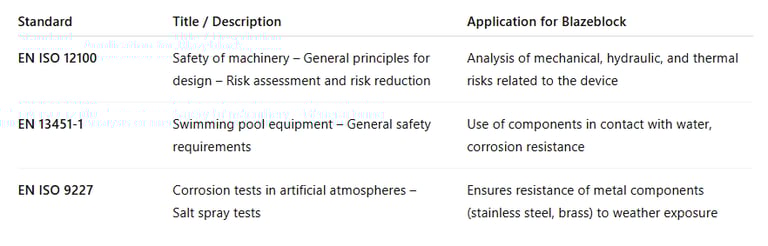

The following standards were taken into account during the design, manufacturing, and risk assessment of the product:

6. Instructions provided

• Step-by-step installation guide

• Terms of use

• Safety warnings

• Recommended maintenance
