Complete ready-to-install thermal kit - Protection against radiation and heating
$2990.00
🛡️ Protect your home even before the fire gets close!
HydroDome x3 pack
BlazeBlock's HydroDome isn't just a fire-fighting ramp: it's a water shield, designed to surround your home with a protective halo in the event of an external threat.
In this pack, you receive three HydroDome ramps, for extended coverage (120-140m2~) and enhanced protection of your roof or surrounding area, depending on the projection size.
Made from high-strength alloy, these ramps are easy to install, with or without drilling, and ready to act in seconds as soon as they are activated. They create an active barrier against embers, flames and thermal rise.
Each ramp sprays water over a wide area, helping to cool exposed surfaces and slow the spread of fire.
Whether you're an individual looking to protect your home, or a small business looking to anticipate risks, this double pack is the ideal solution for effective preventive defense.
Don't let the fire decide — take the lead with BlazeBlock !
✓ Standards: CE certified and compliant with current regulations
🔴 2-year product warranty
⚠️ Safety Warning:
The HydroDome ramp is designed to protect your property in the event of an external fire or embers reaching the building, it is not intended to protect people.
Heat and toxic smoke will still be present in the environment.
Immediately evacuate the premises if recommended by the authorities.
Never enter or remain inside a burning building, even if it is equipped with the ramp.
✓ Type of protection: Water projection around the perimeter of the roof to prevent the spread of surrounding fire
✓ Use: Protection of homes, small warehouses
✓ Operating pressure: 6 to 10 bars / 87 to 145 PSI
Water Projection System
✓ Number of nozzles:
9 aluminium high-pressure wide-angle nozzles to achieve a 360° projection angle
✓ Flow per nozzle:
Between 4 and 8 L/min
→ 3000 to 4500 liters/hour for 9 aluminium nozzles
✓ Projection distance: Between 3 and 5 meters ( depending on the wind, it also waters your garden and can reach a greater projection distance )
✓ Nozzle type: High-performance spray nozzles made of aluminium
✓ Activation system: Manual, connected to a water network or booster pump
✓ Ramp material: Anti-corrosion treated aluminum / aluminium
✓ Connection diameter: 19-20 MM inside
✓ Spray angle: 360°
✓ Weather resistance: UV, frost, and extreme temperatures
✓ Estimated lifespan: 10 to 15 years
Protected Surface
140 square meters for 5 meters of projection (7-9bars / 101-130PSI)
(calculated based on a 360° projection angle)
When connected to a booster pump capable of delivering an optimal pressure of 7 to 9 bars, the double ramp’s water consumption is approximately 4000 liters per hour.
As an example, in the event of a fire, if you choose to use your swimming pool as the water source, you would need a pool of at least 20m3 to operate the ramp for 4-5 hours continuously in case of danger.
If using a domestic water network, the spray output will be lower, as standard household systems typically provide 1,000 to 1,500 liters per hour at around 2 bars~.
You can also use your pump with a cistern, water tank, reservoir, or well as the supply source.
For comparison, firefighter hoses consume significantly more water:
Up to 400 L/min for medium-flow hoses
Between 500 and 800 L/min for attack hoses, with linear projection

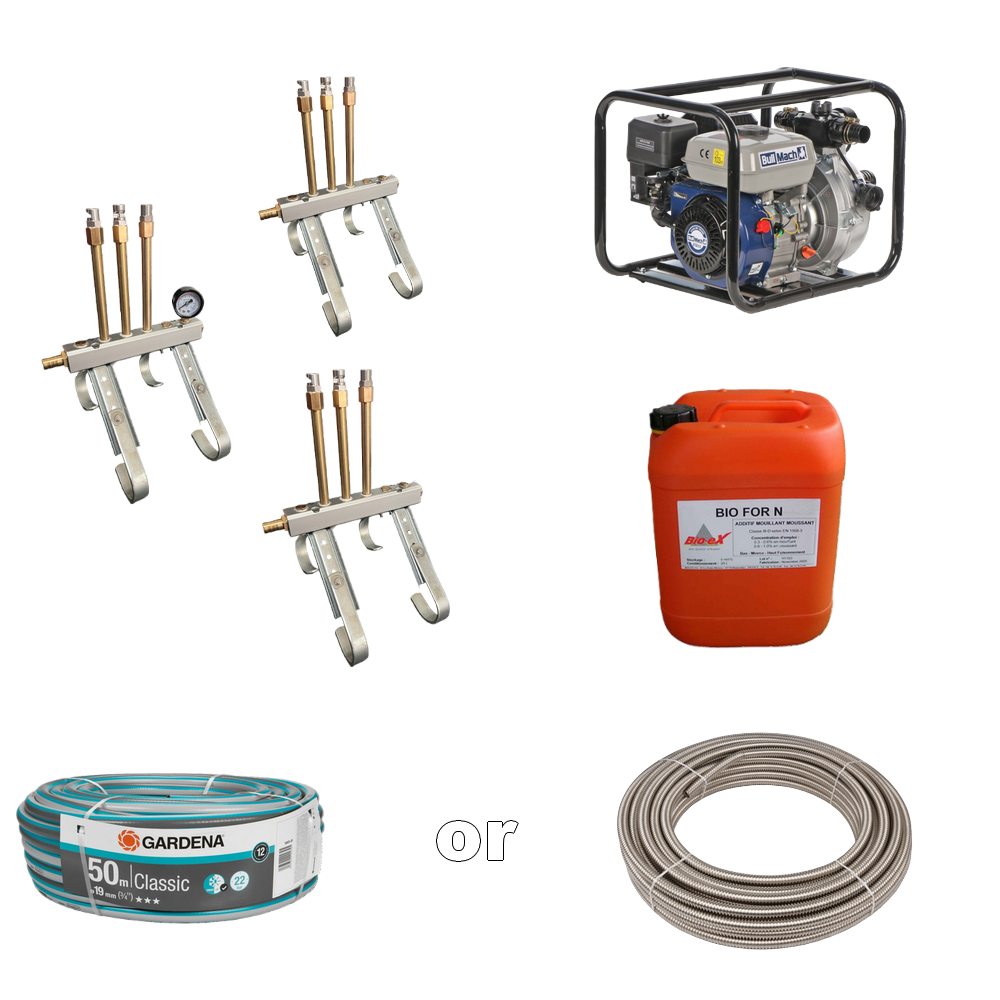

✔ 1 x 6-way ramp + 2 x 5-way ramp against vegetation fire propagation in high-strength, UV- and corrosion-resistant alloy for greater durability.
✔ Bullmach 7.8 bar 300 L/min thermal pump ( and activate the system with an effective pressure of 4 to 5 bar (always with 50 meters of hose)
✔ A 20-liter can of BIO FOR N class A foaming wetting agent for even more effective spraying against flames and reignition, a fluorine-free and biodegradable product that is safe for your microbial fauna (garden) and your roof. This product is also used by firefighters in their firefighting operations. (See the instructions included in the ramp kit for effective use.)
All necessary fittings and pipes for immediate installation, namely:
1 fitting for the pump 1“/19mm Øext + 1 fitting 1”/25mm Øext
1 Gardena 20mm pipe, 50 meters, resistance 20bar / 1 polyethylene pipe, 4 meters, PN16 25 MM Øext or 1 Stahlmann stainless steel pipe, threaded and flexible (extreme heat resistance 600°)
8 clamps 20-25MM Ø
5 discreet wall brackets 25MM for piping
25MM reducer if using a thermal pump
✔ 9 stainless steel wide-angle high-pressure spray nozzles (pre-installed)
✔ 6 steel supports + 12 sliding tile hooks
✔ 1 pressure gauge
✔ 9 brass fittings: 1/4" male + female, 15 cm
1/2" BSP adapter with hose connection fitting
6 clamps for fittings
6 brass plugs 1/4" BSP + 3
plugs 1/2"
32 screws in various sizes + washers
✔ 1 user manual
An installation manual will be included in the kit
1. Installation in 3 steps ( ~40 min ) ( Tools required: 1 flat screwdriver, 2 7/8 mm wrenches )
Place the first ramp two tiles after the start of the roof ridge (the highest point where the two slopes meet), then place the second ramp in the middle of your roof or according to your needs, and on the other side of the ridge, place the last ramp, again two tiles away from the end of the roof.
Use the sliding hooks provided to slide under the ridge tiles without drilling, insert the hooks 2 by 2 on the same side under the chosen tile, then screw the ramp supports onto your hooks.
Make sure the ramp is securely fastened and straight after installation.
2. Connection
2. Connection (screwdriver or 7/8 mm wrench for clamps)
Connect the three ramps to each other (19 mm Ø pipe required) and then connect the ramp inlet to your pump (also 19-20 mm).
Once connected to your pump, you can use water from your pool, well, reservoir, cistern, etc.
The polyethylene suction connection is 25 mm Øext, connection supplied
Recommended minimum flow rate: 4500 - 5000 liters/hour
Optimal pressure: 8 to 9 bar for a spray radius of up to 5 meters.
Check all connections for leaks before starting up.
3. Operation
Prime and start your pump.
Ensure that all sprinklers are spraying properly and that there are no leaks at the connections.
Leave the ramp running continuously as long as there is a threat of external fire.
✅ TIP: For increased effectiveness, start the ramp before flames are nearby.
Pre-wetting the surroundings of your home provides better fire resistance.
Our rates include shipping and various export taxes, totaling $450~.
We use UPS to deliver your ramps directly to your address.
Due to our launch period, which includes pre-orders, delivery times vary from 15 to 28 days.
Delivery times will be subject to change outside of the pre-order phase.
